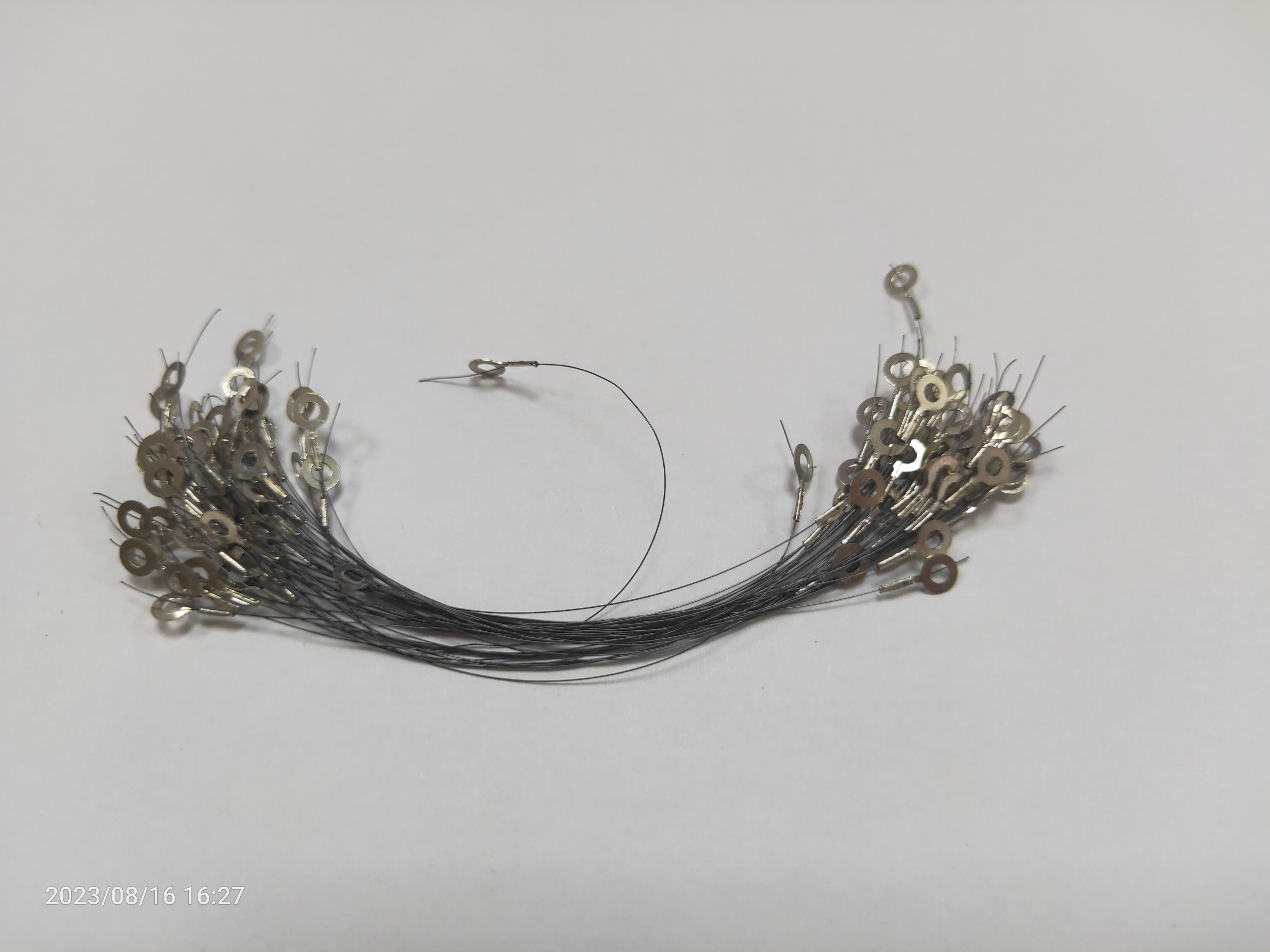

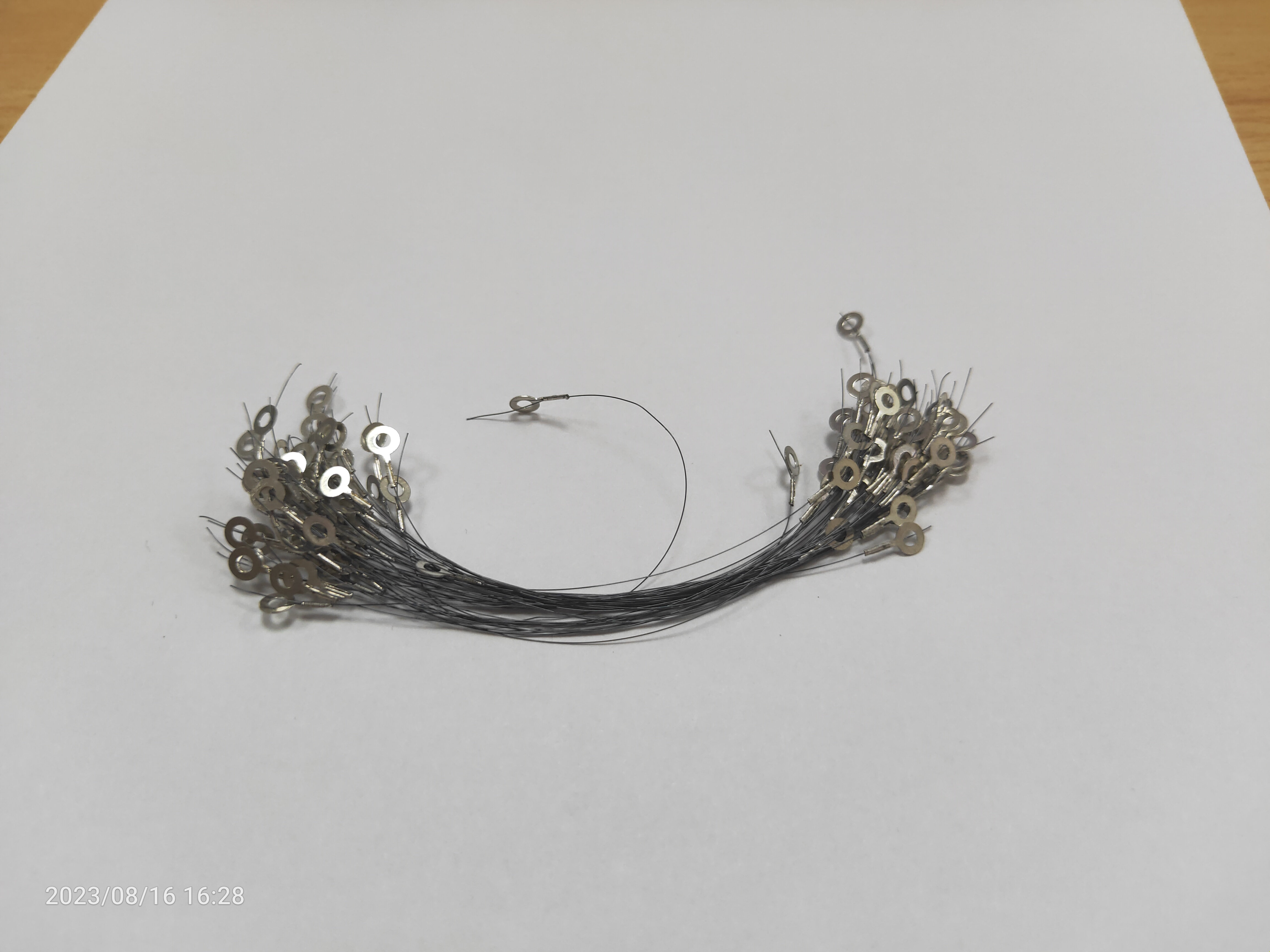

Product Overview
Nitinol actuator wire – often referred to as "muscle wire" – is a precision-engineered linear actuation component manufactured from nickel-titanium (NiTi) shape memory alloy. Unlike conventional electric motors, solenoids, or pneumatic cylinders that rely on complex mechanical assemblies, Nitinol actuator wire harnesses the material's intrinsic phase transformation properties to generate direct linear motion. When electrically heated, the wire contracts by up to 4–5% of its original length, exerting substantial force – approximately 25,000 pounds per square inch – while operating silently, smoothly, and without moving parts.
This unique combination of high power-to-weight ratio, miniature footprint, and reliable repeatability makes Nitinol actuator wire the preferred choice for applications where space is constrained, weight is critical, and conventional actuators are impractical. From smartphone camera stabilization to prosthetic limbs and satellite deployment systems, Nitinol actuator wire is redefining what is possible in compact actuation.
How It Works: The Science of Shape Memory Actuation
Nitinol actuator wire operates on the principle of the shape memory effect – a reversible solid-state phase transformation between two crystal structures: martensite and austenite. At room temperature, the wire exists in its martensite phase, which is soft and easily deformable. When a mechanical load is applied, the wire elongates. Upon heating – typically via the application of an electrical current (Joule heating) – the wire undergoes a phase transformation to austenite. As it transforms, the wire recovers to its pre-deformed, "trained" length, contracting and performing mechanical work – lifting a load, pulling a release valve, or driving a mechanism. As the wire cools, it reverts to the martensite phase, and the applied load elongates it again, ready for the next cycle.
This cycle is not merely thermal expansion – it is a fundamental change in the material's atomic structure. The contraction is approximately one hundred times greater than ordinary thermal expansion and occurs through an internal solid-state restructuring that is silent, smooth, and powerful.
Key Performance Characteristics
High Power-to-Weight Ratio: Nitinol actuator wire delivers remarkable force relative to its size and weight. A thin wire just 0.3 mm in diameter can exert a loading force of over 10 N under typical operating conditions, making it ideal for applications where weight reduction is paramount.
Exceptional Fatigue Life: When operated within recommended parameters – typically 100 MPa to 150 MPa application stress – Nitinol actuator wire can last for millions of thermo-mechanical cycles. Proper "training" of the wire during manufacturing ensures functional stability, with consistent stroke and actuation temperature cycle after cycle.
Silent Operation: The phase transformation occurs without noise, vibration, or mechanical friction. This silent actuation is critical for consumer electronics, medical devices, and other applications where acoustic signatures matter.
Design Flexibility: With fewer moving parts than traditional actuators, Nitinol wire enables simpler, more compact designs. The wire can be configured in straight, coiled, or custom geometries to suit specific application requirements.
Superior Corrosion Resistance: The formation of a protective titanium oxide layer provides outstanding corrosion resistance, making Nitinol actuator wire suitable for medical, marine, and harsh-environment applications.
Critical Design Parameters
Designing with Nitinol actuator wire requires careful consideration of several key parameters:
Transformation Temperature (Af): The austenite start temperature, or "actuation start" temperature, determines at what temperature the wire begins to contract under a given load. Standard actuator wires are available with activation temperatures ranging from 70°C to 130°C.
Application Stress: The optimal stress range for maximizing stroke performance and fatigue life is typically between 100 MPa and 150 MPa. Stresses outside this range may be used depending on design requirements.
Available Stroke: Under typical loading conditions, Nitinol actuator wire delivers 4% strain (contraction), with a maximum of 5%. This means a 100 mm wire can contract by 4–5 mm – a modest but highly useful displacement for many applications.
Hysteresis Width: The temperature difference between austenite and martensite transformation temperatures – typically 30 ± 5°C – determines how quickly the wire resets after heating.
Electrical Characteristics: Actuator wire is typically driven by constant current, with recommended currents varying by wire diameter. For a 0.3 mm diameter wire, the recommended applied current is approximately 1.1 A, with a resistance of 13.39 Ω/m.
Applications Across Industries
Consumer Electronics: Nitinol actuator wire is widely used for optical image stabilization in smartphone cameras and autofocus mechanisms. Its miniature footprint and silent operation make it ideal for portable devices.
Medical Devices: Applications include surgical instrumentation, prosthetic limbs, robotic limbs, micro pumps, and blood pressure test valves. The biocompatibility of Nitinol – certified to ISO 13485 – enables implantable and patient-contact applications.
Aerospace & Defense: Nitinol actuator wire is employed in satellite antenna deployment systems, shape-shifting mechanisms, vibration dampers, and locking/latching systems. Its reliability and lightweight nature are critical in space-constrained, mission-critical environments.
Automotive: Applications include door locks, mirror controls, environmental controls, interior comfort systems (lumbar support), and safety relief valves for fire protection.
Robotics & Automation: Nitinol wire actuators are used in robotic limbs, micro clutches, ultra-light remote controls, and micro circuit breakers. Their ability to replace small motors or solenoids with simpler, lighter, quieter solutions is driving innovation in robotics.
Active Textiles & Wearables: The small form factor and silent operation of Nitinol actuator wire enable active textiles and wearable devices that respond to environmental or user inputs.
Quality and Manufacturing Excellence
Nitinol actuator wire is manufactured to rigorous standards, primarily ASTM F2063 (Standard Specification for Wrought Nickel-Titanium Shape Memory Alloys). Wire diameters typically range from 0.025 mm to 1.016 mm, with ultra-fine wires available for micro-scale applications.
The manufacturing process includes specialized "training" – a thermomechanical treatment that stabilizes the wire's actuation characteristics. Trained actuator wire exhibits functional stability, dimensional stability (no residual elongation after multiple cycles), and optimal actuation performance. Unlike straight annealed Nitinol wire, actuator-grade wire is processed specifically to ensure reproducible stroke and stable recovery over millions of cycles.
Conclusion
Nitinol actuator wire represents a fundamental shift in actuation technology – moving from complex, multi-component mechanical systems to a single, intelligent material that transforms electrical energy into precise linear motion. Its unique combination of high force output, miniature footprint, silent operation, and exceptional fatigue life makes it the ideal solution for engineers seeking to innovate in constrained spaces. Whether the requirement is stabilizing a smartphone camera, deploying a satellite antenna, or powering a prosthetic limb, Nitinol actuator wire delivers performance that conventional actuators simply cannot match. With its proven reliability, biocompatibility, and design flexibility, Nitinol actuator wire is the smart choice for the next generation of compact, high-performance actuation systems.
