Nitinol Shape Memory & Superelastic Washers – Smart Fastening Solutions

Product Overview

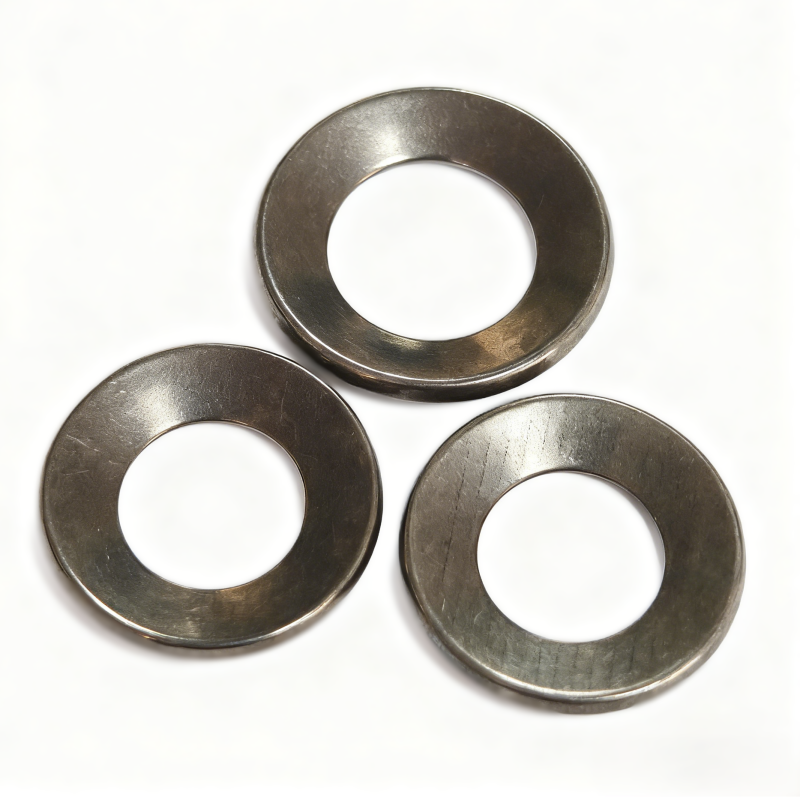

Nitinol washers are precision-engineered fastening components manufactured from nickel-titanium (NiTi) shape memory alloy, a material renowned for its extraordinary thermomechanical properties. Unlike conventional steel or polymer washers that rely solely on elastic deformation, Nitinol washers leverage two distinct functional mechanisms – shape memory effect and superelasticity – to deliver intelligent, adaptive performance in demanding applications.

Above the alloy's transformation temperature, Nitinol exists in a high-strength austenitic phase; below this temperature, it becomes martensitic and can be easily deformed. This reversible phase transformation, combined with the alloy's exceptional corrosion resistance and biocompatibility, makes Nitinol washers the preferred choice for applications ranging from aerospace fastening systems to implantable medical devices.

Superelasticity and Shape Memory: The Core Advantages

The defining characteristic of Nitinol washers is their superelastic behavior – the ability to undergo significant reversible deformation (up to 8–10% strain) and return to their original shape upon load removal. This property is fundamentally different from the elastic deformation of conventional spring steels, which are limited to strains of less than 1%. When a Nitinol washer is compressed or deflected, stress induces a martensitic transformation that absorbs mechanical energy; upon unloading, the material reverts to its austenitic structure, fully recovering its original geometry.

The shape memory effect offers an additional dimension of functionality. Nitinol washers can be thermally trained to "remember" a specific shape. After deformation at lower temperatures, heating the washer above its transformation temperature triggers a complete recovery to the preset configuration. This capability enables innovative fastening solutions where washers can be installed in a compact deformed state and later activated to exert precise clamping forces or create leak-tight seals.

Design Flexibility and Customization

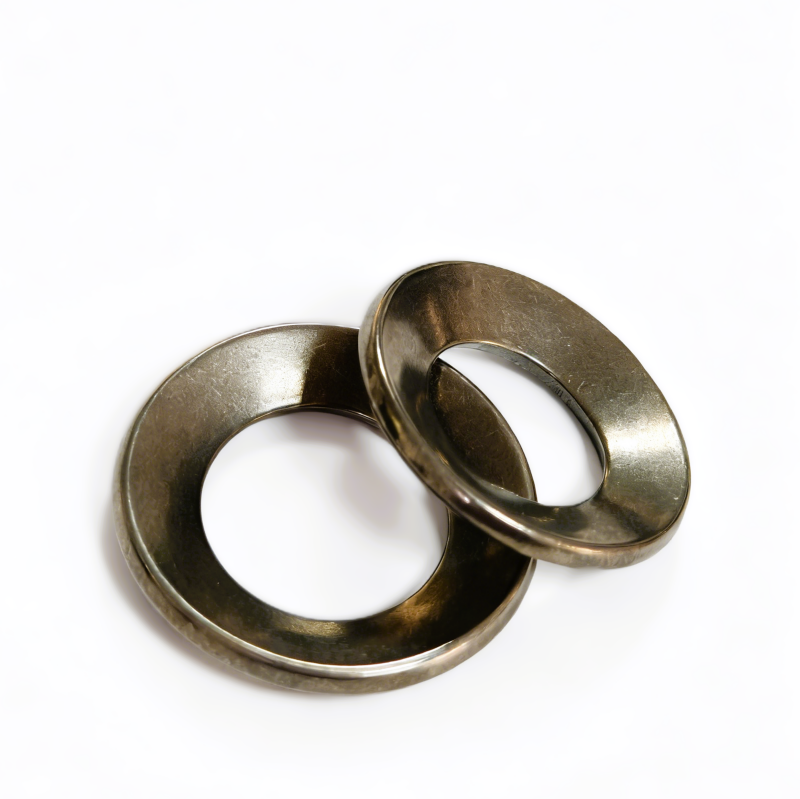

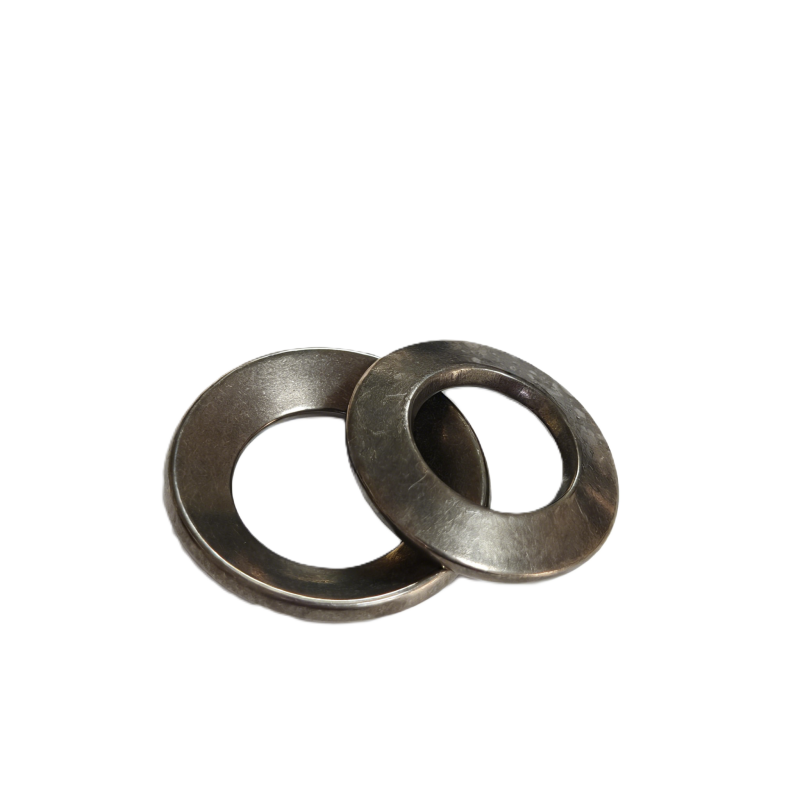

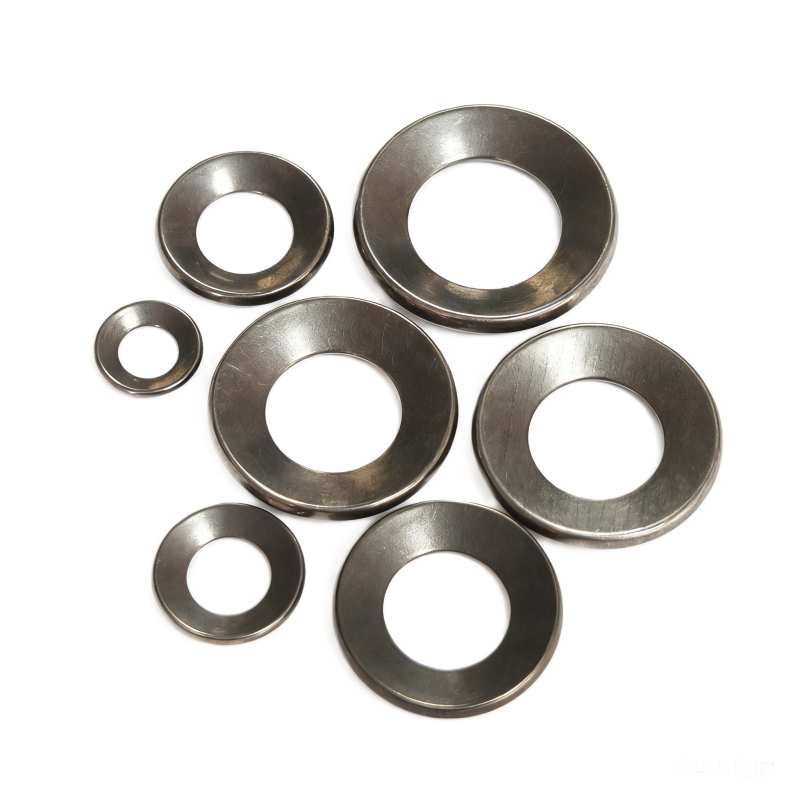

Nitinol washers are available in a wide range of geometries, including flat washers, Belleville (disc spring) washers, wave washers, and custom annular configurations. Each geometry can be optimized to leverage the alloy's unique spring characteristics – tunable stiffness, high damping capacity, and marked hysteretic behavior that absorbs vibrational energy.

Critical design parameters include outer diameter, inner diameter, thickness, arch height, flatness, and surface roughness. Dimensional tolerances are application-specific, with medical-grade components requiring surface finishes as fine as Ra ≤ 0.4μm and industrial sealing grades at Ra ≤ 0.8μm. Material composition can be tailored to achieve specific transformation temperatures, mechanical properties, and fatigue resistance. Nitinol washers are typically manufactured to ASTM F2063 / ASME SF2063 (UNS N01555) standards.

Key Performance Benefits

Vibration Damping and Anti-Loosening: Traditional threaded fasteners are notoriously susceptible to loosening under vibration – a problem that has persisted for as long as threaded fasteners have existed. Nitinol washers provide superior resistance to loosening through a combination of stress-induced martensitic transformation and the material's inherent vibration-absorbing characteristics. The washer exerts an adjustable tensile preload on the bolt shank while the material's damping properties dissipate vibrational energy.

Superior Sealing Performance: When configured as gaskets or sealing washers, Nitinol components elastically bend to effect a reliable seal between mating surfaces. Unlike rubber or silicone seals that can dry out, creep, or degrade under extreme conditions, Nitinol maintains its sealing integrity across wide temperature and pressure ranges.

Exceptional Corrosion Resistance: The formation of a protective titanium oxide layer on the washer surface provides outstanding corrosion resistance, making Nitinol suitable for harsh chemical environments and even implantable medical applications. An integral NiTiOx layer can be applied to provide electrical insulation and minimize galvanic corrosion.

Long Fatigue Life: Nitinol alloys exhibit excellent fatigue resistance, enabling washers to withstand repetitive loading cycles without performance degradation. Design features such as smooth transitions, fillet radii, and stress-relief zones further enhance durability.

Applications Across Industries

Aerospace & Defense: Nitinol washers are used in aircraft pipe joints, spacecraft antennas, fasteners, connecting parts, and electromechanical actuators. Their lightweight nature and reliability under extreme conditions make them indispensable in mission-critical systems.

Medical Devices: The biocompatibility of Nitinol, combined with its superelasticity, enables applications in cardiovascular implants, orthopedic fixation devices, dental implants, and surgical instruments. Nitinol washers are also used in catheter-delivered stents and replacement heart valves.

Automotive & Industrial: In automotive applications, Nitinol washers provide efficient sealing and cleaning performance for bolts, screws, and fasteners. They are widely used in machinery manufacturing for precision equipment shock absorption, in energy and power systems for high-voltage equipment sealing, and in petrochemical pipelines for high-temperature and high-pressure sealing.

Electronics & MEMS: Nitinol washers are employed in MEMS devices, flexible circuit clamping, and sensor component support, benefiting from the alloy's unique combination of electrical and mechanical properties.

Quality and Manufacturing Excellence

Modern Nitinol washers are manufactured using advanced techniques including wire electrical discharge machining (EDM), laser cutting, stamping, and wire arc additive manufacturing (WAAM). Each manufacturing method is selected based on the specific geometry, tolerance requirements, and production volume. Post-manufacturing thermomechanical treatments are applied to set the shape memory characteristics and optimize superelastic performance.

Conclusion

Nitinol washers represent a paradigm shift in fastening technology – moving from passive mechanical components to intelligent, adaptive elements that respond to mechanical and thermal stimuli. Whether the requirement is vibration-resistant fastening, leak-tight sealing, or precise load control in extreme environments, Nitinol washers deliver performance that conventional materials simply cannot match. With their unique combination of superelasticity, shape memory, corrosion resistance, and biocompatibility, Nitinol washers are the smart choice for engineers who demand nothing less than excellence.
